A ” new era ” coming….it’s time to use the electronic boards as modular boards , this new upgrade allow more flexibility and give at final customers more possibility to upgrade in the future their mixers.
This is a BIG step forward to be more eco-sustainable also and save money .
Audio-DJ use the main board that allows to mounting up to 4 channels ( Vinyl – Line – Mic ) , this mean that the basic two channels can be ” transformed ” in a 3 or 4 channels …..it’s not enought ? there is also a 6 channels boards in case.

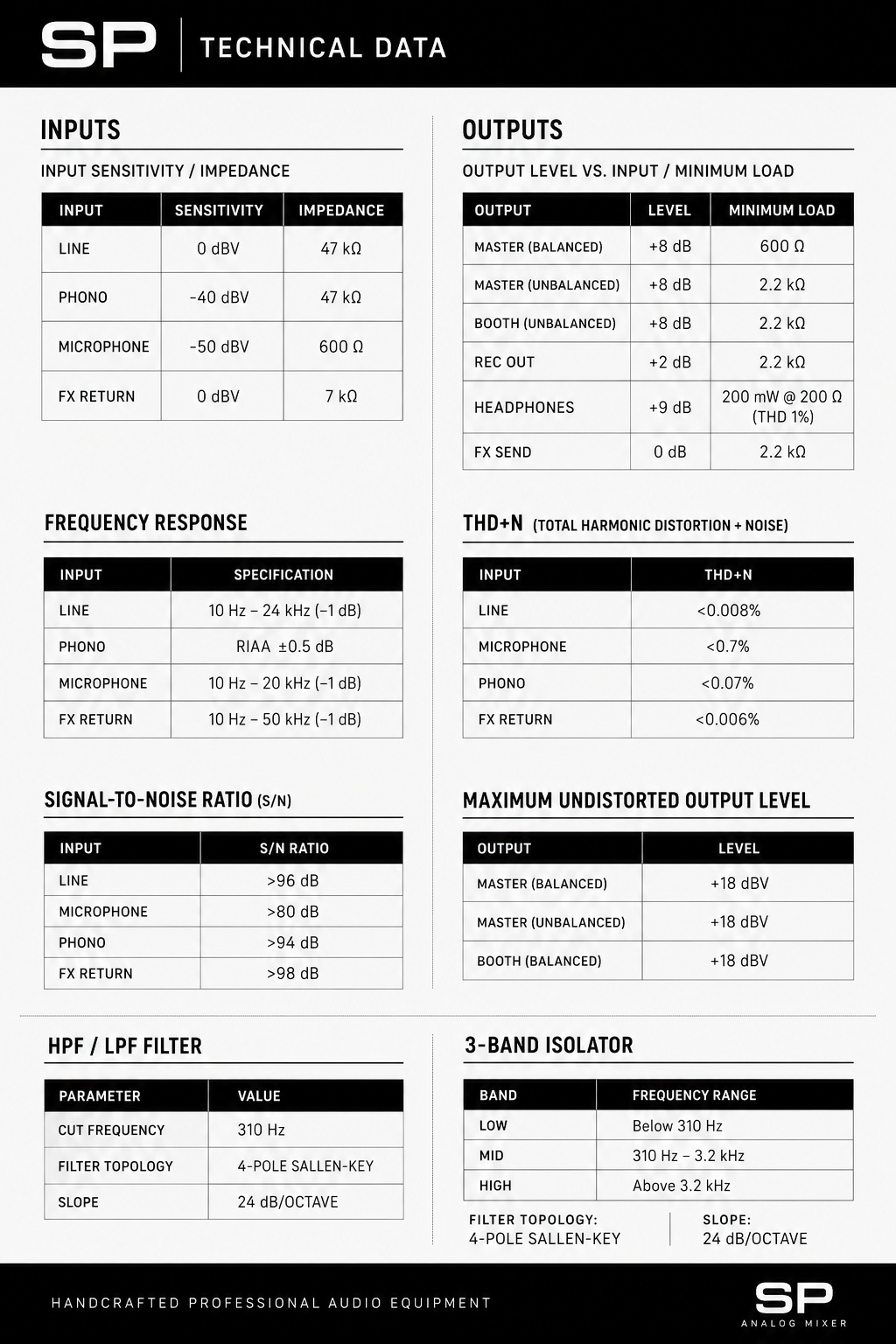

TECHNICAL DETAILS
| Inputs Sensitivity/Impedance | Outputs Level Vs input/Minimum Load | Frequency Response | THD-N: distorsione armonica totale |
|
LINE : 0dBV/47kΩ PHONO : -40dBV/47kΩ MICRO : -50dBV/600 Ω FX RETURN : 0dBV/7kΩ |
MASTER (BALANCED) : +8 dB/600Ω MASTER (UNBALANCED) : +8 dB/2.2kΩ BOOTH (UNBAL) : +8 dB/2.2kΩ REC : +2 dB/2.2kΩ HEADPHONES : +9 dB/200mΩ/200Ω THD 1% FX SEND : 0dB/2.2kΩ |
LINE : 10Hz÷24kHz -1dB PHONO : RIAA ±0.5dB MICRO : 10Hz÷20kHz -1dB FX RETURN : 10Hz÷50kHz -1dB |
LINE : <0.008% MICRO : <0.7% PHONO : <0.07% FX RETURN : <0.006% |
| Signal Noise Ratio: rapporto segnale/rumore | Max Undistorted Output Level | HPF/FPL filter control | Isolator Control |
|
LINE : >96dB MICRO : >80dB PHONO : >94dB FX RETURN : >98dB |
MASTER (BALANCED) : 18dBV MASTER (UNBAL) : 18 dBV BOOTH (BALANCED) :18 dBV |
Cut Frequency: 310 Hz Sallen Key 4 pole filter ( 24 dB/Oct) |
BASS : 310 Hz MID : 310 to 3200 Hz HIGH : 3200 Hz Sallen Key 4 pole filter ( 24 dB/Oct) |
 |
 |
 |
 |
SP2 Available in two model – ask for more pictures by mail or whats app
 |
 |
 |
 |
SP3 available in two model – ask for more pictures by mail or whats app
SP4 available in two model ask for more pictures by mail or whats app
 |
 |
